Views: 0 Author: HOBOVAR Engineering Team Publish Time: 2026-10-22 Origin: HOBOVAR Engineering Team
Quick Answer: Smart city LCD display solutions are integrated outdoor digital signage systems that provide real-time information, wayfinding, and public communication in urban environments. Unlike standard commercial displays, these specialized units feature high-brightness panels (2,500+ nits), IP65/IK10 protection ratings, and IoT connectivity to withstand harsh outdoor conditions while delivering critical city data 24/7.
Urban infrastructure is undergoing a radical transformation. As cities worldwide invest in digital transformation initiatives—projected to reach $158 billion globally by 2026 according to IDC—traditional static signage is being replaced by intelligent, connected display systems.
Whether you're a city planner evaluating options for a smart transportation hub, or a procurement manager sourcing outdoor digital signage for municipal projects, this guide covers everything you need to know about selecting, deploying, and maintaining smart city LCD display solutions in 2026.
What Are Smart City LCD Display Solutions?
Smart city LCD display solutions refer to networked outdoor display systems specifically engineered for public spaces. These are not simply "TVs placed outside." They are integrated information terminals that combine:
High-brightness LCD panels (2,500–3,500 nits) for sunlight readability
Ruggedized enclosures with IP65 dust/water resistance and IK10 impact protection
Intelligent thermal management for extreme temperature operation (-30°C to 55°C)
IoT connectivity (4G/5G, WiFi 6, LoRaWAN) for real-time data updates
Remote management software for content scheduling and system monitoring
Unlike indoor digital signage, these systems must maintain visibility in direct sunlight, survive vandalism attempts, and operate reliably in rain, snow, and extreme temperatures without human intervention.
Key Technical Specifications That Matter
When evaluating smart city displays, procurement teams often focus on screen size alone. However, these five technical parameters determine long-term performance and ROI:
1. Brightness and Sunlight Readability
Standard indoor displays produce 300–500 nits. Outdoor environments require minimum 2,500 nits for shade readability and 3,000+ nits for direct sunlight exposure. Look for displays with automatic brightness sensors that adjust output based on ambient light conditions—this reduces power consumption by up to 40% during nighttime operation.
2. Environmental Protection Ratings
Rating | What It Means | Why It Matters |
IP65 | Dust-tight, protected against water jets | Essential for rain/snow resistance |
IK10 | Impact resistance (20 joules) | Vandalism protection in public spaces |
NEMA 4X | Corrosion resistance | Coastal cities with salt air exposure |
3. Thermal Management Systems
Outdoor displays face a critical challenge: internal temperatures can reach 80°C+ in summer and -40°C in winter. Quality solutions include:
Active cooling: Industrial air conditioners or fans with dust filters
Passive cooling: Heat sink designs with thermal conductive materials
Smart heating: Automatic internal heaters for cold climate startup
4. Connectivity and Integration
Modern smart city displays serve as IoT endpoints, not just content players. Ensure your solution supports:
Dual 4G/5G SIM slots for network redundancy
API integration with city data platforms (transit feeds, emergency alerts)
Edge computing capabilities for offline operation during network outages
5. Power Efficiency and Sustainability
With municipalities targeting carbon neutrality, power consumption is a procurement criterion. Look for:
LED backlighting (50% more efficient than CCFL)
Solar-ready designs with MPPT charge controllers
Energy Star or equivalent certifications
Application Scenarios: Where Smart City Displays Deliver Value

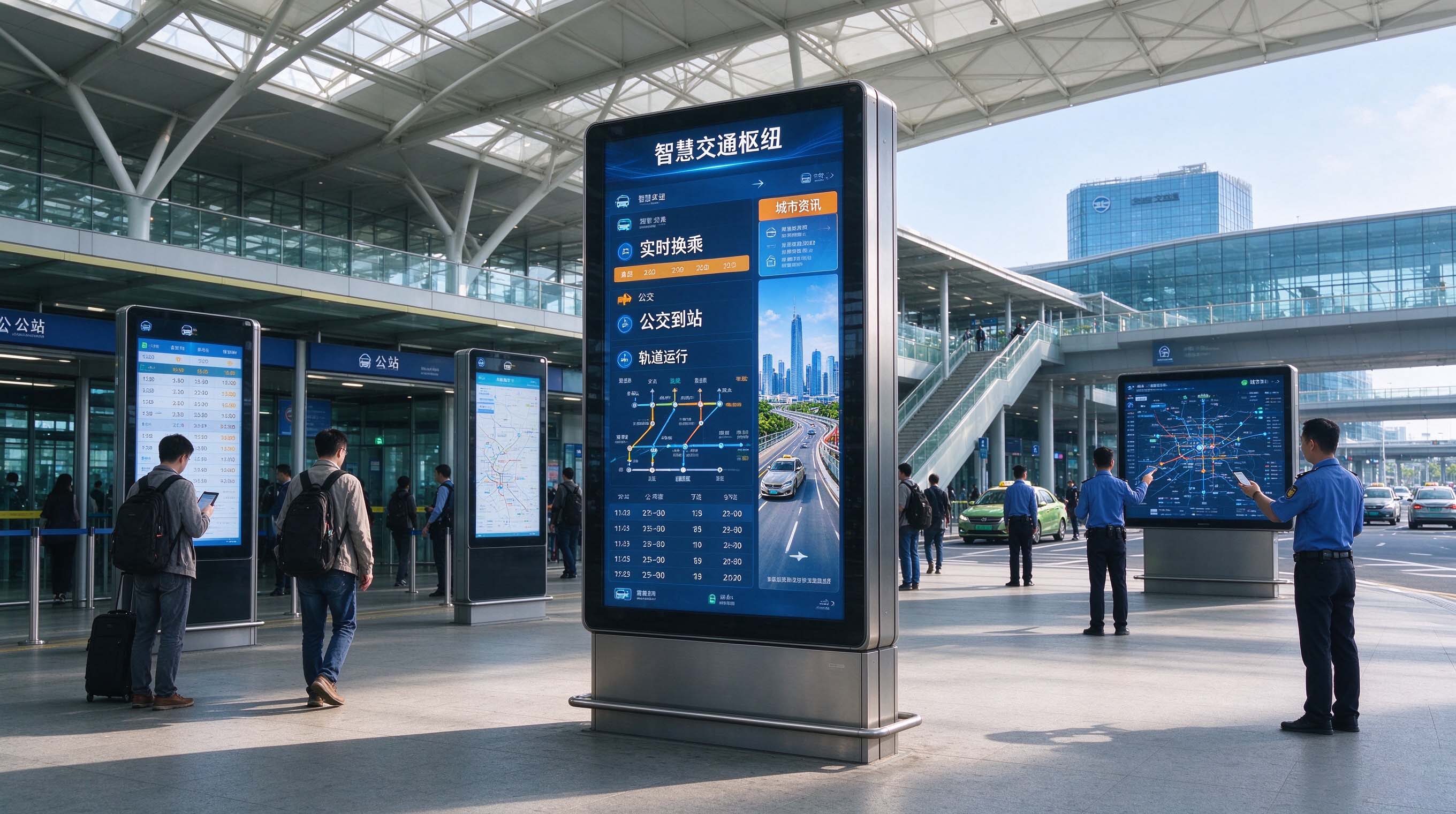

Smart Transportation Hubs
Bus shelters, metro stations, and airport terminals use LCD displays for real-time arrival information, service alerts, and wayfinding. These systems integrate with GTFS (General Transit Feed Specification) data to provide accurate, minute-by-minute updates.
Key requirement: High refresh rates (60Hz+) to prevent motion blur on scrolling text, and anti-glare glass for readability at various angles.

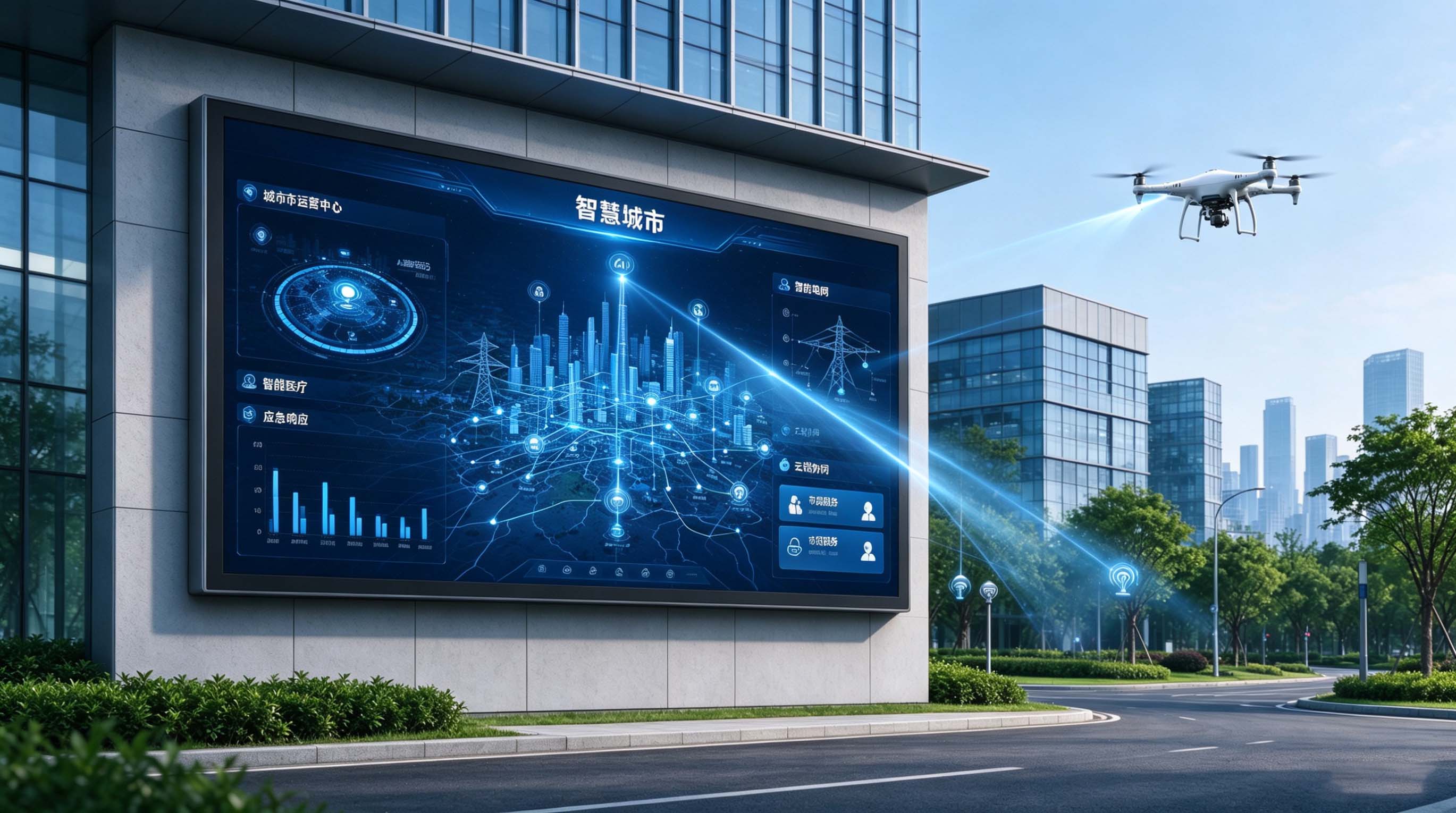

Public Information and Emergency Communication
City centers and public squares deploy large-format displays (55"–86") for:
Emergency broadcast systems (Amber alerts, weather warnings)
Civic event announcements
Air quality index (AQI) monitoring displays
Critical feature: Priority interrupt capabilities that override regular content during emergencies, with battery backup for power outages.
Smart Street Furniture
Modern bus shelters, kiosks, and smart benches incorporate LCD displays that serve multiple functions:
Interactive wayfinding with touchscreen capabilities
USB charging station status displays
Environmental sensor data visualization (temperature, humidity, PM2.5)

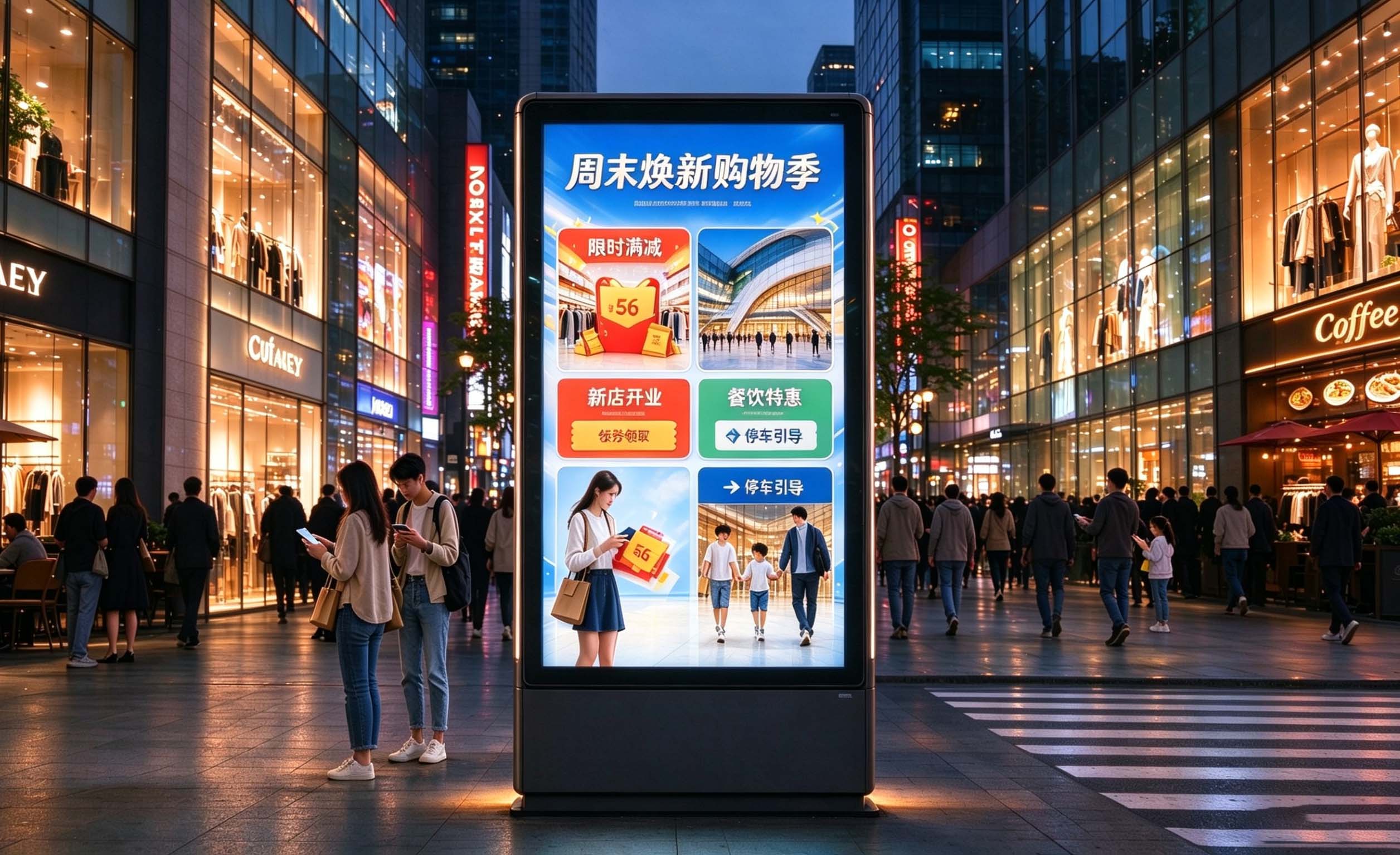

Retail and Wayfinding in Commercial Districts
Shopping districts and tourist areas use smart displays for:
Interactive directory services
Promotional content with QR code integration
Pedestrian traffic flow optimization
How to Choose the Right Solution: A Procurement Checklist
Use this checklist when evaluating vendors for your smart city project:
Technical Validation
Verify brightness specifications with actual on-site testing (not just datasheets)
Request IP and IK certification certificates from accredited labs
Confirm operating temperature range matches your local climate extremes
Test visibility with polarized sunglasses (common issue with cheap LCD panels)
Software and Integration
Ensure CMS (Content Management System) supports your existing city data platforms
Verify remote monitoring includes predictive maintenance alerts
Check for OTA (Over-The-Air) update capabilities for security patches
Total Cost of Ownership (TCO) Analysis
Calculate 5-year costs including: power consumption, maintenance visits, and component replacement
Compare warranty terms (industry standard: 3 years parts/labor for outdoor units)
Evaluate local service network availability
Compliance and Standards
EN 12966 (European standard for road information display devices)
UL 48 (US safety standard for electric signs)
Local electromagnetic compatibility (EMC) regulations
Installation and Maintenance Best Practices
Even the highest quality displays fail prematurely without proper installation:
Site Preparation
Ensure adequate ventilation clearance (minimum 50cm on all sides for active cooling units)
Verify power supply stability; outdoor displays require surge protection (10kA+)
Consider anti-theft mounting systems for high-traffic areas
Preventive Maintenance Schedule
Monthly: Clean air filters, check gasket integrity
Quarterly: Verify thermal management performance, update security patches
Annually: Professional calibration of brightness sensors and color accuracy

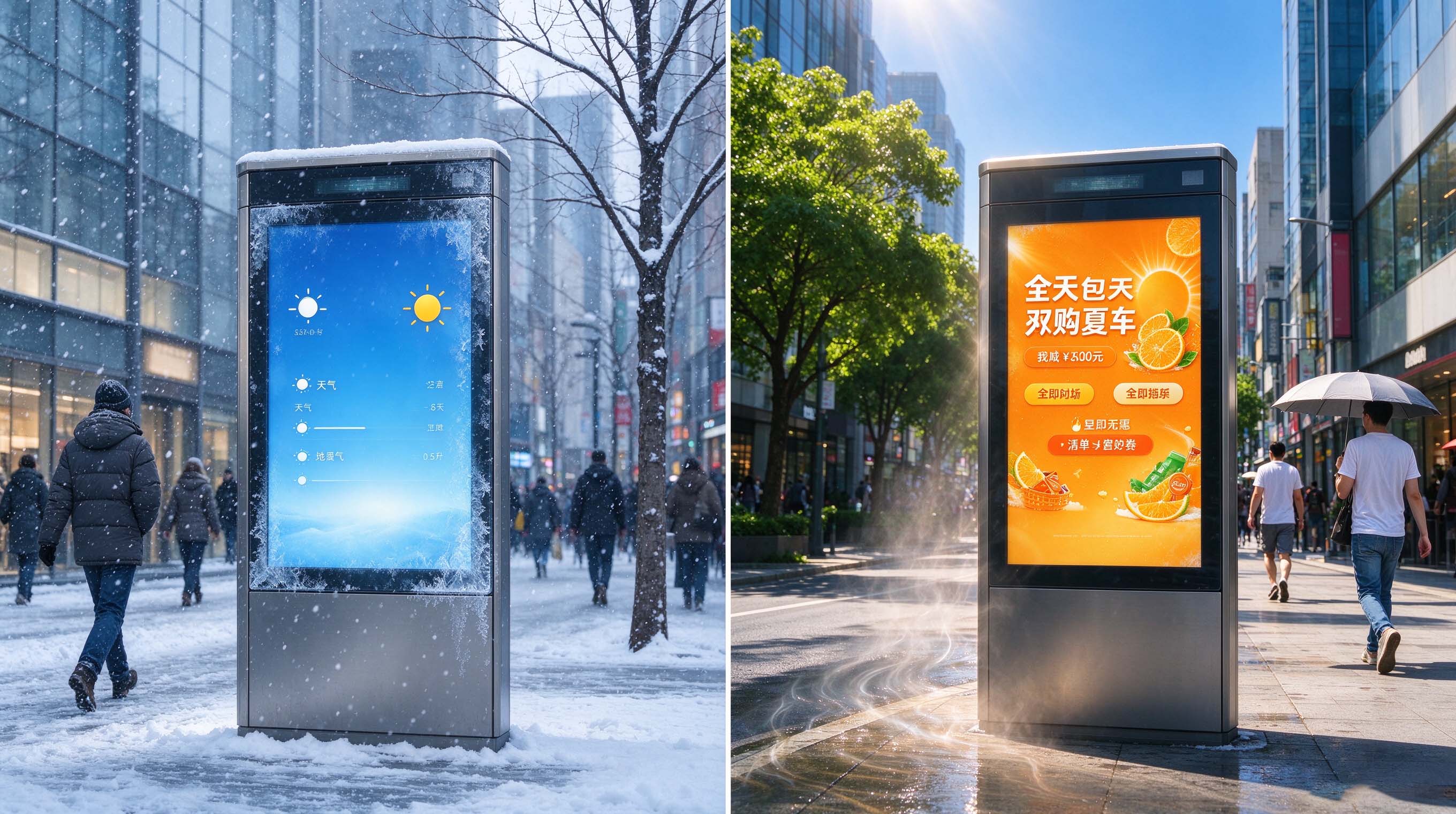

Winterization
In cold climates, displays must include automatic defrost functions. Never power on a display when internal temperature is below -20°C without pre-heating—this causes permanent LCD panel damage.
The Future: AI Integration and Smart City Displays (2026 Trends)
The next generation of smart city displays is moving beyond passive information delivery:
AI-Powered Content Optimization
Displays now use computer vision (with privacy-compliant anonymization) to adjust content based on audience demographics and dwell time, increasing engagement by 35% according to recent industry studies.
Predictive Maintenance
IoT sensors monitor backlight degradation, fan performance, and temperature fluctuations, alerting maintenance teams before failures occur—reducing downtime by up to 60%.
Energy Grid Integration
Smart displays are becoming grid-responsive assets, adjusting brightness and operation schedules based on real-time electricity pricing and renewable energy availability.
Frequently Asked Questions (FAQ)
Q: What is the difference between a regular outdoor TV and a smart city LCD display?
A: Consumer outdoor TVs are designed for residential patios with controlled viewing distances. Smart city displays feature industrial-grade components, higher brightness (2,500+ nits vs. 1,000 nits), vandal-resistant glass, and 24/7 operation ratings. They also include remote management capabilities essential for municipal deployments.
Q: How long do outdoor LCD displays last in smart city applications?
A: Quality industrial displays last 50,000–100,000 hours (5.7–11.4 years of continuous operation). However, backlight brightness degrades to 50% after approximately 50,000 hours. Proper thermal management can extend lifespan by 30–40%.
Q: Can smart city displays operate during power outages?
A: Yes, if equipped with backup power systems. Critical emergency communication displays should include battery backup (minimum 4 hours) or solar power systems with battery storage to maintain operation during grid failures.
Q: What is the typical lead time for smart city display projects?
A: Standard units ship in 4–6 weeks. Customized solutions (specific colors, integrated sensors, non-standard sizes) require 8–12 weeks including certification testing. Plan for additional 2–4 weeks for site installation and commissioning.
Q: Are smart city displays secure against hacking?
A: Modern systems include hardware-level security (TPM 2.0 chips), encrypted data transmission (TLS 1.3), and network segmentation capabilities. Ensure your vendor provides regular security updates and follows IEC 62443 industrial cybersecurity standards.
---
