How To Choose Outdoor Digital Signage: 7 Technical Parameters That Matter

Quick Answer: When choosing outdoor digital signage, prioritize these 7 technical parameters:
(1) Brightness: minimum 2,500 nits for shaded areas, 3,000+ nits for direct sunlight;
(2) Protection: IP65 minimum for dust/water, IK10 for impact resistance;
(3) Temperature range: -30°C to 55°C operating capability;
(4) Connectivity: dual 4G/5G SIM slots with WiFi backup;
(5) Power efficiency: LED backlighting with automatic brightness sensors;
(6) Viewing angle: 178° wide-angle for public spaces;
(7) Maintenance: front-accessible components for field servicing.

---

Procurement managers and city planners face a common problem: two displays with identical screen sizes can perform completely differently in real-world conditions.

A $2,000 display that fails after one winter costs more than a $4,000 display that operates reliably for eight years. This guide cuts through marketing specifications to focus on the seven parameters that actually determine long-term performance—and how to verify them before signing a purchase order.

Parameter 1: Brightness and Sunlight Readability

Why It Matters: Standard indoor displays (300-500 nits) become unreadable in outdoor environments. Direct sunlight requires significantly higher luminance to overcome surface reflections and ambient light interference.

Minimum Thresholds:

• Shaded areas (covered walkways): 2,500 nits

• Partial sun (east/west exposure): 3,000 nits

• Direct sunlight (open plazas): 3,500+ nits

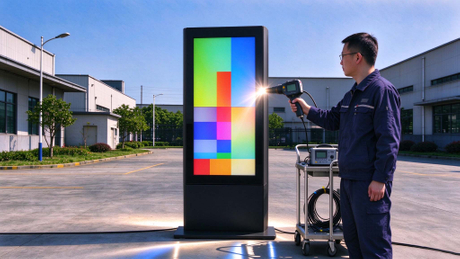

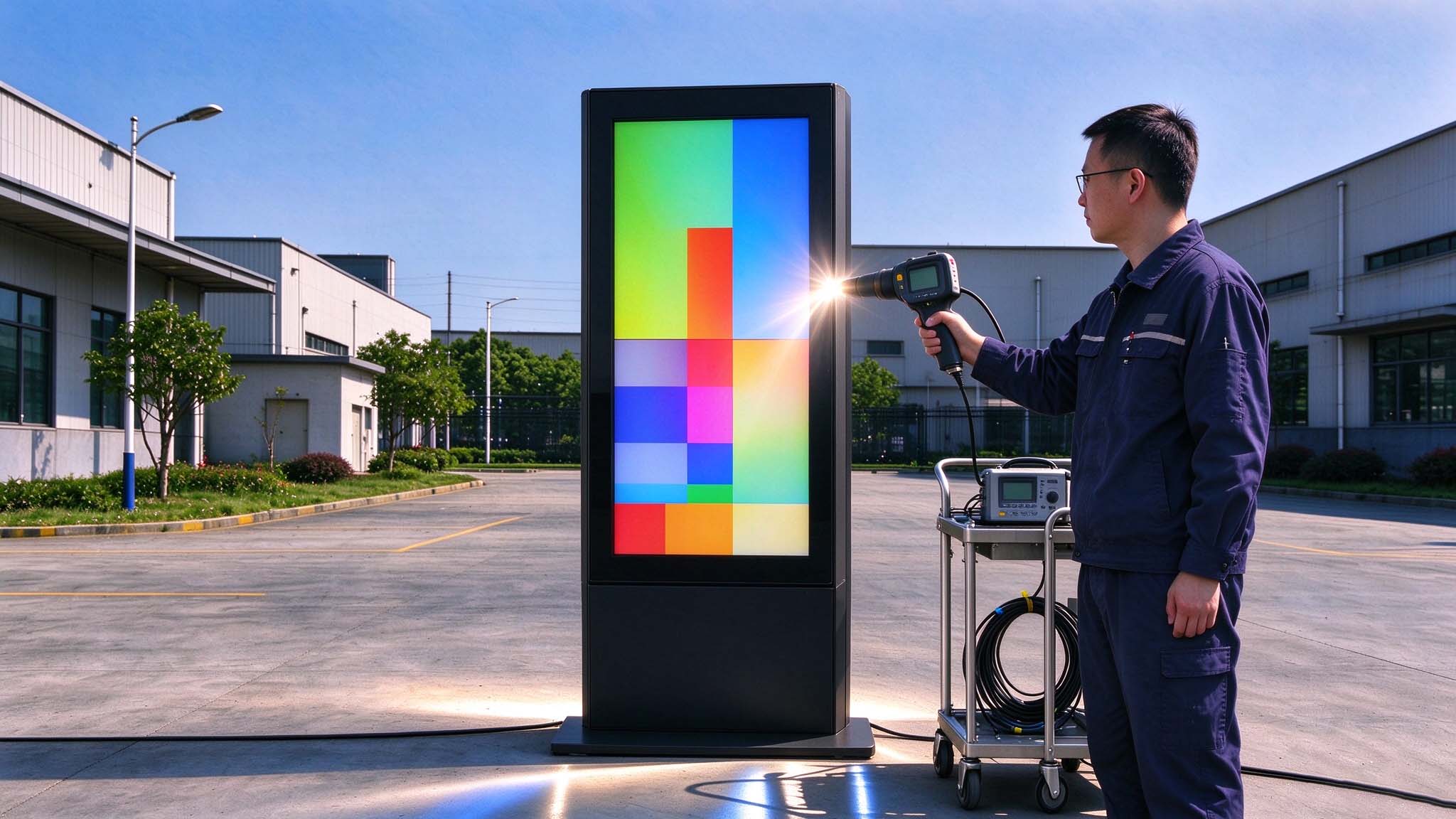

How to Verify:

Request a live demonstration or video of the display operating at noon in direct sunlight. Datasheet claims of "high brightness" often refer to peak HDR capability, not sustained full-white output.

Red Flag: If the manufacturer cannot provide video evidence of sunlight readability, the display likely uses consumer-grade panels with temporary boost modes that overheat and dim within minutes.

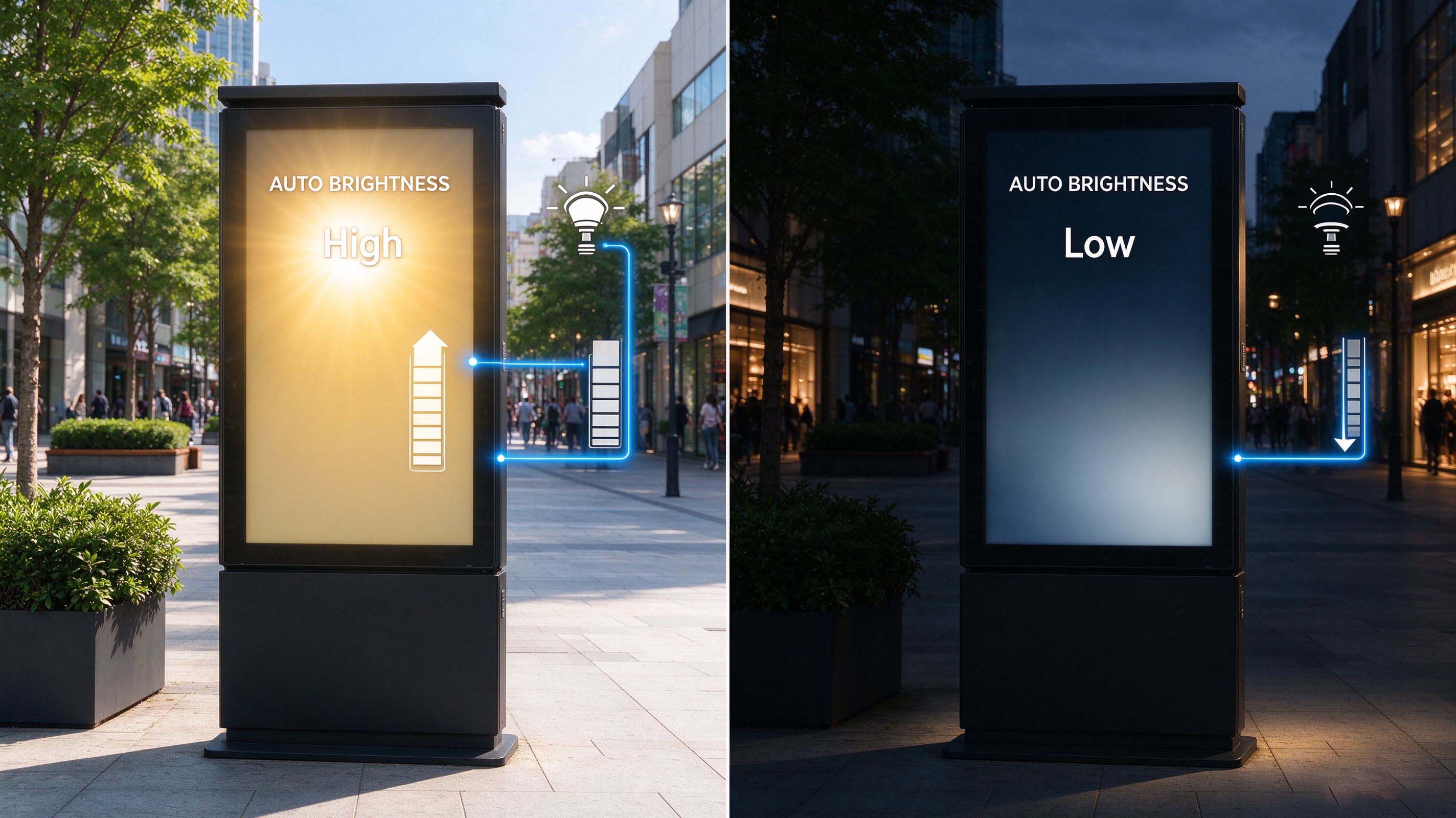

Pro Tip: Look for automatic brightness sensors that adjust output based on ambient light. This extends panel lifespan by 40% and reduces nighttime light pollution complaints.

Parameter 2: Environmental Protection Ratings (IP and IK)

Why It Matters: Outdoor displays face rain, dust, vandalism, and temperature extremes. Protection ratings determine survival, not just performance.

Required Ratings:

• IP65: Dust-tight and protected against water jets (essential for rain)

• IP66: Protected against powerful water jets (coastal/heavy rain areas)

• IK10: Impact resistance of 20 joules (equivalent to 5kg dropped from 40cm)

How to Verify:

Request certification certificates from accredited labs (SGS, TÜV, Intertek), not just test reports from the factory's own lab.

Critical Detail: Check the gasket material. EPDM rubber gaskets last 10+ years; PVC gaskets crack within 2-3 years, compromising IP ratings.

Red Flag: "IP65 compliant" without certification documents usually means "designed to meet" but not tested or verified.

Parameter 3: Thermal Management and Operating Temperature

Why It Matters: LCD panels fail when internal temperatures exceed 85°C or drop below -30°C. Outdoor enclosures can reach 70°C+ in summer sun and -40°C in northern winters.

Required Specifications:

• Operating temperature: -30°C to 55°C (minimum), -40°C to 60°C (extended)

• Storage temperature: -40°C to 70°C

Thermal Management Types:

How to Verify:

Ask for thermal simulation reports or request a 72-hour burn-in test at maximum ambient temperature. Quality manufacturers conduct these tests routinely.

Red Flag: No mention of cold-start heaters. Displays in climates below -20°C require internal heaters to prevent LCD panel damage during power-on.

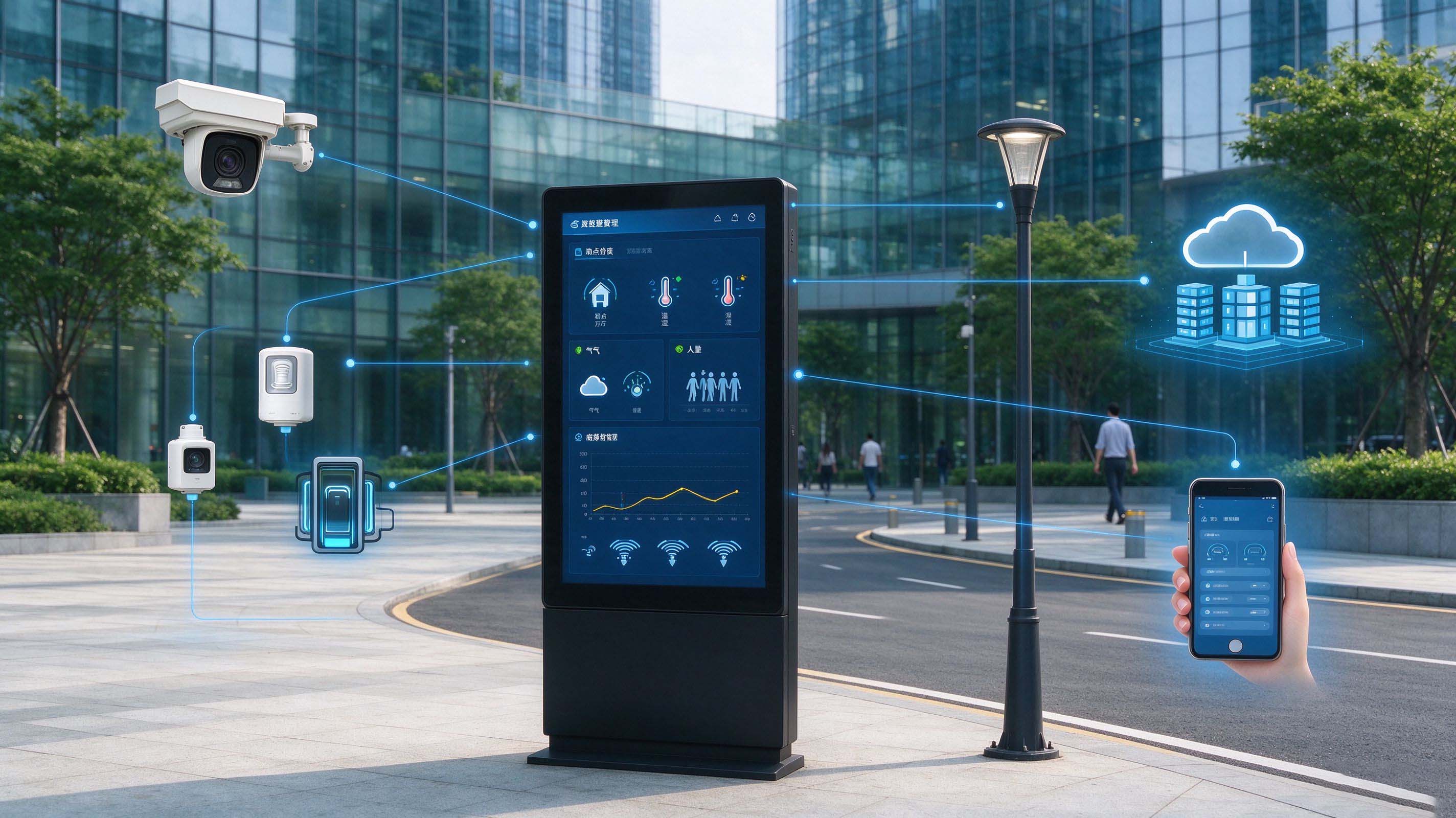

Parameter 4: Connectivity and Network Redundancy

Why It Matters: Smart city displays are IoT endpoints, not standalone TVs. Network failure means blank screens and public complaints.

Required Features:

• Dual SIM 4G/5G slots (different carriers for redundancy)

• WiFi 6 for high-bandwidth content updates

• Ethernet with PoE++ for powered network connections

• Offline capability: Local storage playback during network outages

Integration Requirements:

• API access for real-time data feeds (transit, weather, emergency alerts)

• CMS compatibility with your existing content management system

• Remote monitoring for predictive maintenance

How to Verify:

Request a live API demonstration showing real-time data integration. Test the CMS interface yourself—if it requires a engineering degree to schedule content, your team will underutilize the system.

Red Flag: Proprietary CMS with no API documentation. This creates vendor lock-in and prevents integration with city data platforms.

Parameter 5: Power Efficiency and Operating Costs

Why It Matters: A 55" outdoor display running 24/7 consumes 1,500-3,000 kWh annually. At $0.15/kWh, that's $225-$450 per year per display—before cooling costs.

Efficiency Benchmarks:

• LED backlighting: 50% more efficient than CCFL

• Automatic dimming: 30-40% power reduction at night

• Solar-ready designs: MPPT controllers for off-grid installation

How to Verify:

Request power consumption data at 100%, 50%, and 0% brightness levels. Calculate 5-year TCO including electricity, maintenance, and component replacement.

Pro Tip: Displays with Energy Star or equivalent certification may qualify for municipal green procurement incentives.

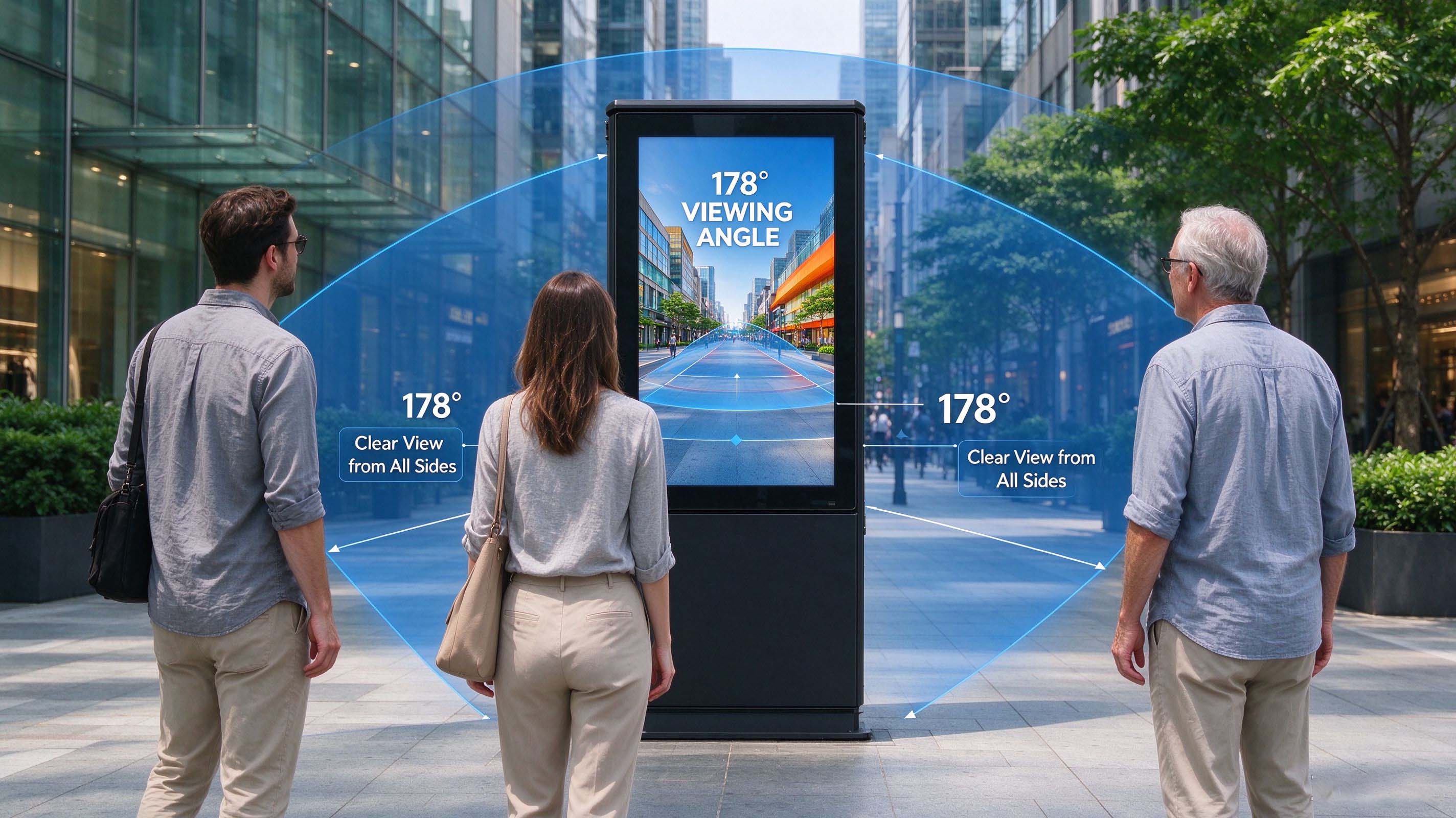

Parameter 6: Viewing Angle and Optical Performance

Why It Matters: Public displays are viewed from multiple angles—pedestrians approaching from the side, drivers at traffic lights, wheelchair users at lower heights.

Minimum Specifications:

• Viewing angle: 178° horizontal/vertical (IPS or VA panels)

• Anti-glare coating: Matte finish, not glossy

• Contrast ratio: 5,000:1 minimum for text readability

How to Verify:

View the display from 45-degree angles during demonstration. Cheap TN panels show color inversion and brightness loss at side angles.

Red Flag: No mention of polarizer type. Budget displays use consumer-grade polarizers that create rainbow patterns when viewed with polarized sunglasses—common in driving or beach environments.

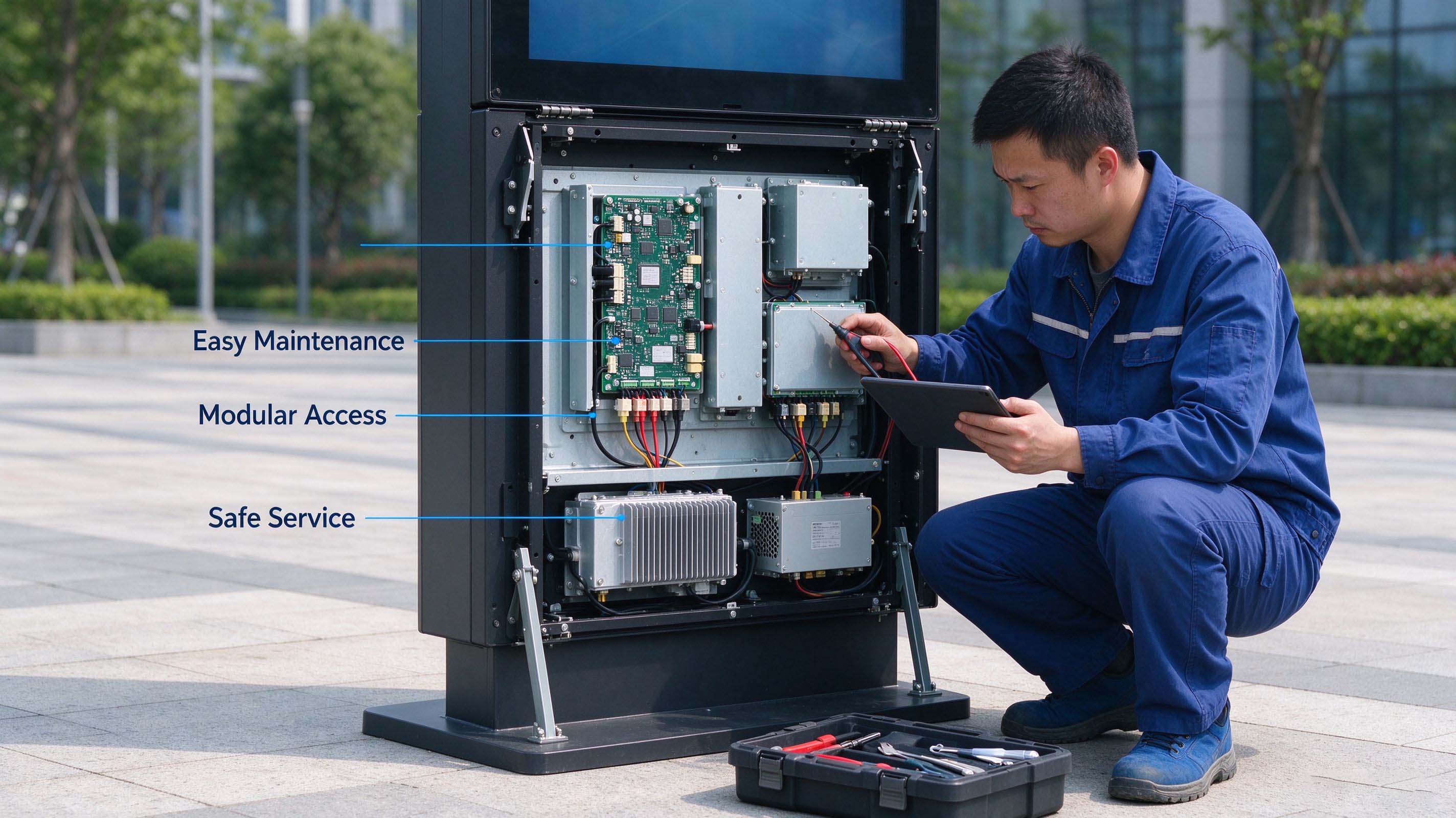

Parameter 7: Maintenance Accessibility and Serviceability

Why It Matters: Outdoor displays require filter cleaning, gasket inspection, and component replacement. If technicians need to disassemble the entire unit for a simple fuse replacement, maintenance costs triple.

Required Design Features:

• Front-accessible components: Power supply, media player, cables

• Modular design: Replaceable backlight units, fans, and boards

• Tool-less entry: Quarter-turn latches for quick inspection

Service Network:

• Local technicians: Factory-trained partners in your region

• Spare parts availability: 5-year guarantee on critical components

• Remote diagnostics: 80% of software issues resolved without site visits

How to Verify:

Request a maintenance manual before purchase. If it requires special tools or complete disassembly for routine service, expect high long-term costs.

Red Flag: No local service partners and 6+ week lead time for replacement parts.

Quick-Reference Procurement Checklist

Use this table during vendor evaluation:

Common Selection Mistakes to Avoid

Mistake 1: Prioritizing Screen Size Over Brightness

A 75" display at 1,500 nits is less readable than a 55" display at 3,500 nits. Size matters less than luminance in outdoor environments.

Mistake 2: Ignoring Total Cost of Ownership

A $3,000 display requiring $800/year in maintenance and $400/year in electricity costs $11,000 over 10 years. A $5,000 display with $200/year maintenance and $250/year electricity costs $9,500—saving $1,500 despite higher upfront cost.

Mistake 3: Overlooking Content Management

The best hardware fails without usable software. Test the CMS interface before purchase—your marketing team will use it daily.

Mistake 4: Skipping Factory Audits

Virtual meetings hide production realities. Visit the facility or hire a third-party inspection service to verify manufacturing capabilities.

Frequently Asked Questions (FAQ)

Q: What is the difference between IP65 and IP66 for outdoor displays?

A: IP65 protects against water jets from any direction (12.5L/min), suitable for rain. IP66 protects against powerful water jets (100L/min) from 3 meters, required for coastal areas or high-pressure cleaning. Both are dust-tight.

Q: Can I use a regular outdoor TV for commercial digital signage?

A: No. Consumer outdoor TVs lack IK10 impact protection, 24/7 operation ratings, remote management capabilities, and commercial warranties. They typically fail within 1-2 years of commercial use.

Q: How important is 4K resolution for outdoor displays?

A: Less important than brightness and durability. Viewing distances in outdoor environments (3-10 meters) make 1080p sufficient for most applications. Invest in brightness and protection first; resolution second.

Q: What questions should I ask during a factory audit?

A: Request to see: (1) Incoming component inspection, (2) Burn-in testing rooms, (3) Waterproof testing procedures, (4) Warehouse conditions, and (5) Quality control documentation for your specific order.

Q: How do I verify brightness claims without visiting the factory?

A: Request a video call during production showing a luminance meter reading at 100% white screen, or hire a third-party inspection service ($200-500) to conduct on-site verification.
